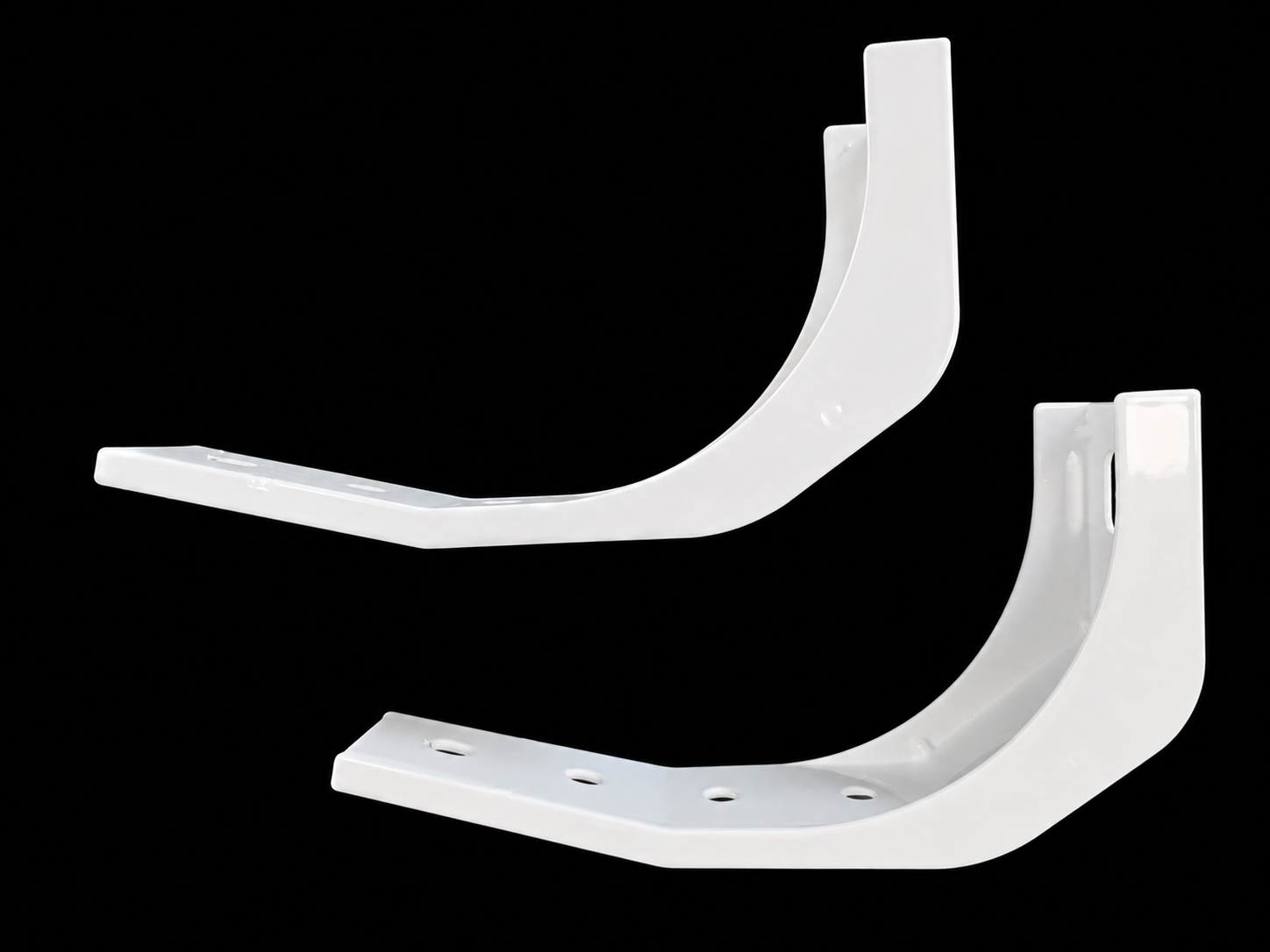

Holding brackets for Slim Air Curtains

2 colors in standard

Perfect;y designed hanging brackets for your new Slim Air Curtain. Available in Black or White

Deep black

The black curtain is an inseparable element of the contemporary industrial style. It fits discreetly into the character of the interior, while performing both practical and decorative functions.

White with black elements

A classic, timeless combination of white and black. In complements the interior architecture and does not upset its character.

Slim air curtain are available in 3 lengths, 3 versions and 2 type possibilities of montage

Lenghts

1m, 1.5m, 2m

Versions

water heat exchanger, electric heaters, without heating elements ("ambient")

Possibilities of montage

vertical, horizontal

Slim Air Curtain - Technical Data

	Slim E-100	Slim W-100	Slim W-100-2R	Slim N-100	Slim E-150	Slim W-150	Slim W-150-2R	Slim N-150	Slim E-200	Slim W-200	Slim W-200-2R	Slim N-200
Power [V/Hz]	230/50 3N – 3×400/50	230 / 50	230 / 50	230 / 50	230/50 3N – 3×400/50	230 / 50	230 / 50	230 / 50	230/50 3N – 3×400/50	230 / 50	230 / 50	230 / 50
Max power consumption [kW]	5.1	0.12	0.1	0.14	9.2	0.17	0.15	0.12	12.2	0.22	0.19	0.23
Max current consumption [A]	8,5	0.5	0.4	0.6	13.0	0.7	0.7	0.8	17.3	1.0	0.9	1.0
IP	20	20	20	20	20	20	20	20	20	20	20	20
Connection [“]	–	1/2	1/2	–	–	1/2	1/2	–	–	1/2	1/2	–
Capacity [m³/h]⁽¹⁾	800-1300	770-1100	770-1050	800-1400	1250-2200	1110-1940	1150-1830	1300-2300	1900-3000	1760-2910	1730-2670	1790-3050
Sound pressure level 5m [dB(A)]⁽²⁾	43-56	45-55	45-55	43-57	40-54	44-56	44-56	41-56	42-57	37-58	37-58	34-56
Sound pressure level 3m [dB(A)]⁽²⁾	44-57	46-56	46-56	44-58	41-55	45-57	45-57	42-57	43-58	38-59	38-59	35-57
Sound power level [dB(A)]⁽³⁾	59-72	61-70	61-71	59-73	56-70	59-72	59-72	56-72	60-73	53-74	53-74	49.5-72
Heating power [kW]⁽⁴⁾	2-5	1.2-12.1	1.9-20.4	–	3-9	2.6-21.0	4.3-35.3	–	4-12	3.7-29.3	6.4-47.7	–
Max heating water temperature [^oC]	–	110	110	–	–	110	110	–	–	110	110	–
Max operating pressure [MPa]	–	1.6	1.6	–	–	1.6	1.6	–	–	1.6	1.6	–
Temperature increase (T)[^oC]⁽⁴⁾	5.0-19.0	5.0-32.5	5.2-57.4	–	4.0-21.0	4.0-32.0	4.3-35.3	–	4.0-19.0	4.0-35.0	6.9-55	–
Mass of the device [kg]	15.1	16.2	17.3	14.7	19.6	21.5	22.7	19	24.6	26.9	28.4	23.8
Range [m]⁽¹⁾	3.5	3.5	3.5	4	3.5	3.5	3.5	4	3.5	3.5	3.5	4

(1) According to ISO 27327-1;
(2) The sound pressure level in a room with an average sound absorption 1500 m3; direction coefficient Q=2;
(3) Sound power level according to ISO 27327-2;
(4) SLIM W, power and temperature range specified for the parameters: fan speed III, heating medium temperature 40/30 ° C temperature at the inlet to the device 20 ° C – fan speed III, heating medium temperature 110/90 ° C temperature at the inlet to the device 0 ° C; SLIM E power range for operation at 1N 230/50 to operation at 3N 400/50;
